Daily household activities such as cooking, washing, and even breathing release moisture, pollutants and germs into the air. Air needs to be regularly refreshed to maintain its purity.

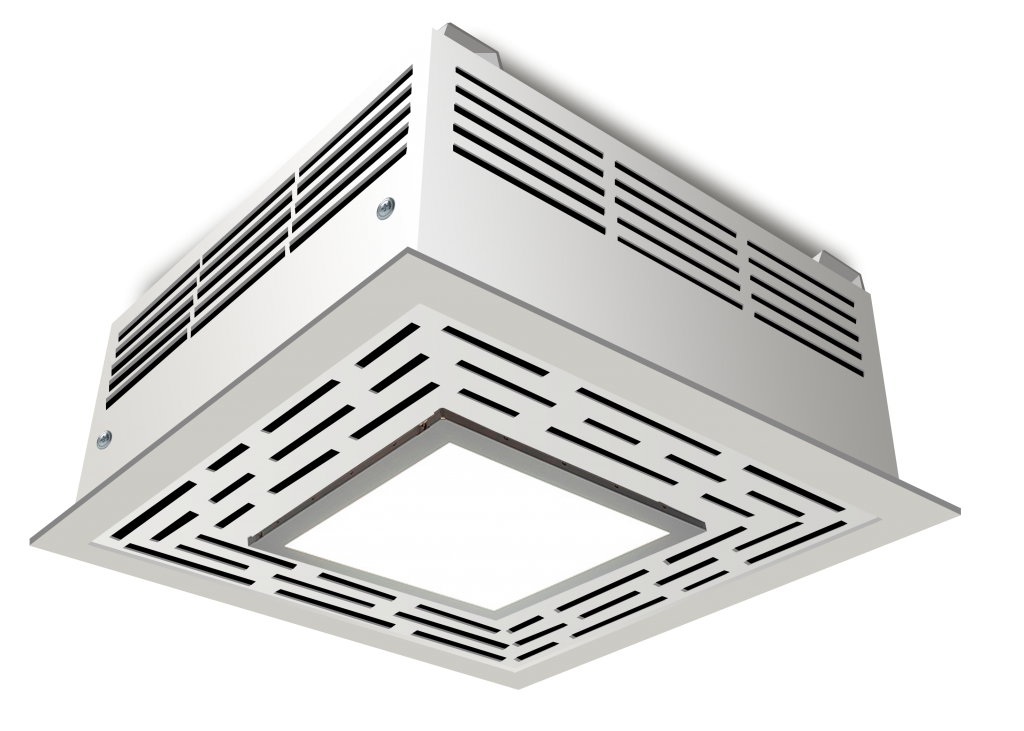

Luminaire Ventilation & Lighting Module (file protected)
FEATURES|BENEFITS:
- Effect performance – remove wet or dry particulates providing versatility in a wide range of application.
- Effective energy recovery – recirculates clean indoor air.
- Easy Installation – does not require elaborate ductwork or expensive installation.
- Affordable operation – no expense to cool as required with exhaust fans or ducted mechanical exhaust.
- Combine a light lifting to give a pool of soft cool or warm ambient.
SPECIFICATIONS :
MODEL : LUM-L300 [w/ LED]
LUM-P300 [w/o LED]
AIRFLOW : 200 – 350 cmh
AREA EFFICIENCY : 9 – 16 m² (@8 ach)
UVC SYSTEM : CCFL 145Ømm | 254nm | 4.8w
FILTER : Electro – SS
- FAN : Centrifugal | 27 W
- NOISE RATING : 55 dB
- DIMENSION : 300 x 300 x 125 mm
- ELECT. RATING : 220 – 240 VAC
- 50 – 60 Hz | 41W
- PANEL LIGHT : 6000 – 6500 K | 15 W

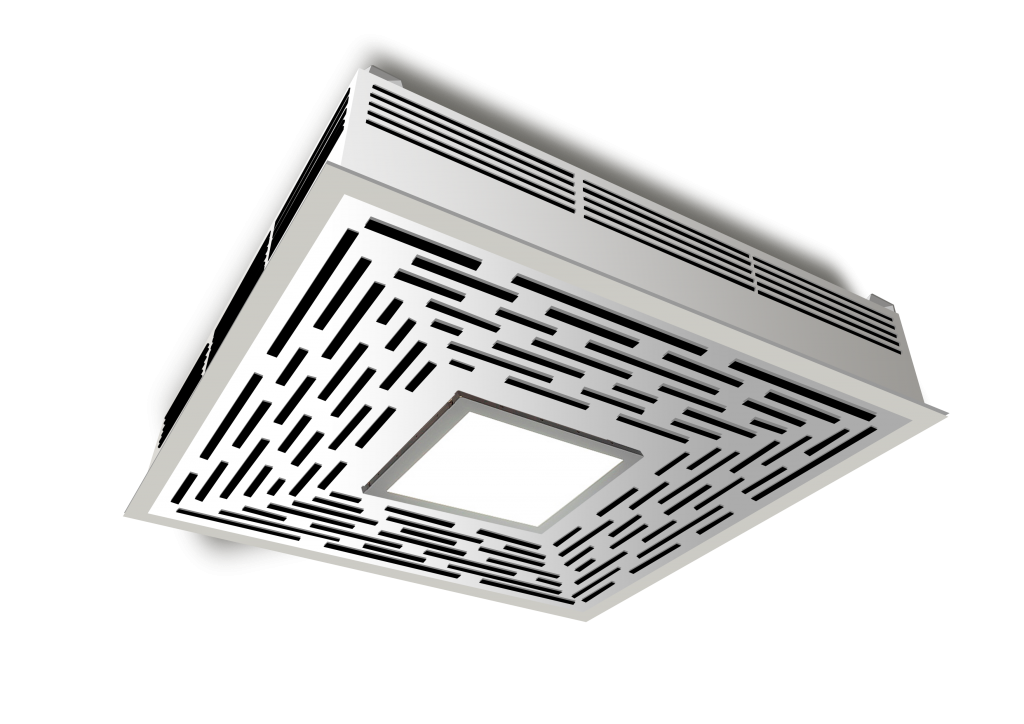

Luminaire Ventilation & Lighting Module (file protected)
FEATURES|BENEFITS:
- Effect performance – remove wet or dry particulates providing versatility in a wide range of application.
- Effective energy recovery – recirculates clean indoor air.
- Easy Installation – does not require elaborate ductwork or expensive installation.
- Affordable operation – no expense to cool as required with exhaust fans or ducted mechanical exhaust.
- Combine a light lifting to give a pool of soft cool or warm ambient.
SPECIFICATIONS :
MODEL : LUM-L600 [w/ LED]
LUM-P600 [w/o LED]
AIRFLOW : 350 – 650 cmh
AREA EFFICIENCY : 16 – 30 m² (@8 ach)
UVC SYSTEM : CCFL 145Ømm | 254nm | 6.0w
FILTER : Electro – SS
- FAN : Centrifugal | 50 W
- NOISE RATING : 55 dB
- DIMENSION : 600 x 600 x 110 mm
- ELECT. RATING : 220 – 240 VAC
- 50 – 60 Hz | 71 W
- PANEL LIGHT : 6000 – 6500 K | 15 W
